I may have taken leave of my sanity, but things have resulted.
Warning: this post is going to have a lot of images, so I'm cutting it now.
So, in a previous post I talked about how, when I have some spare cash, one of the things I tend to do is try and pick up a new technical skill.

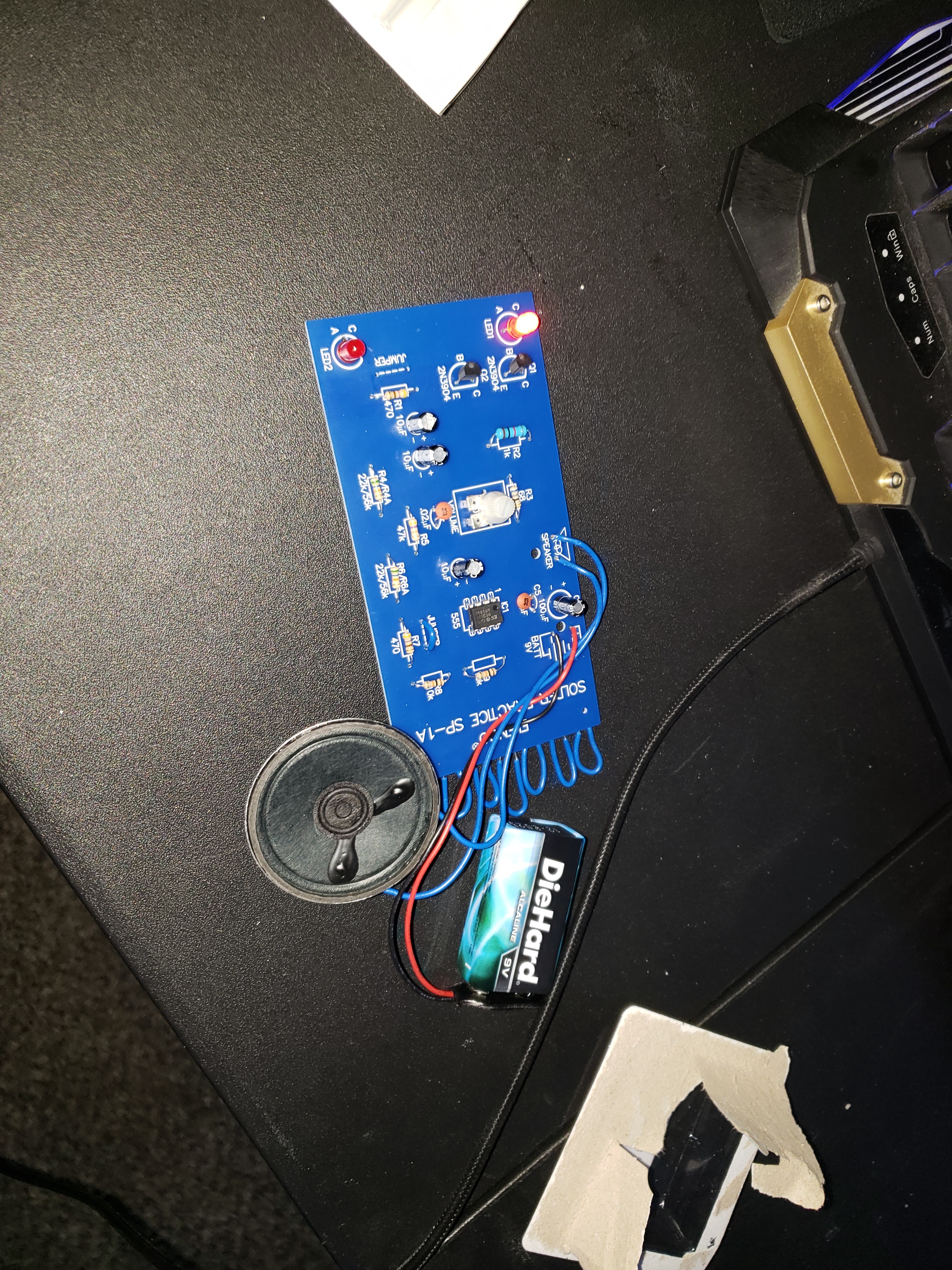

One of the things that I have always wanted to learn is basic electronics. However, the way things generally shook out, I didn't have the time/money to devote to it, until recently. A friend helped me out with some tips and tools and a basic practice kit. (One of the LEDs is not coming on, I'll fix it eventually.)
After this, I moved on to something maybe less complicated but closer to my interests: I made a hecking stunt lightsaber (a lightsaber without sound, one that just lights up.)
I made the hilt out of schedule 40 PVC (1 inch and 1-1/4 inch.) I spray painted it dark metallic grey.
I then started on the basic electronics, following this tutorial by Jay-Gon and this Youtube tutorial from Genesis Custom Sabers on behalf of The Custom Saber Shop.

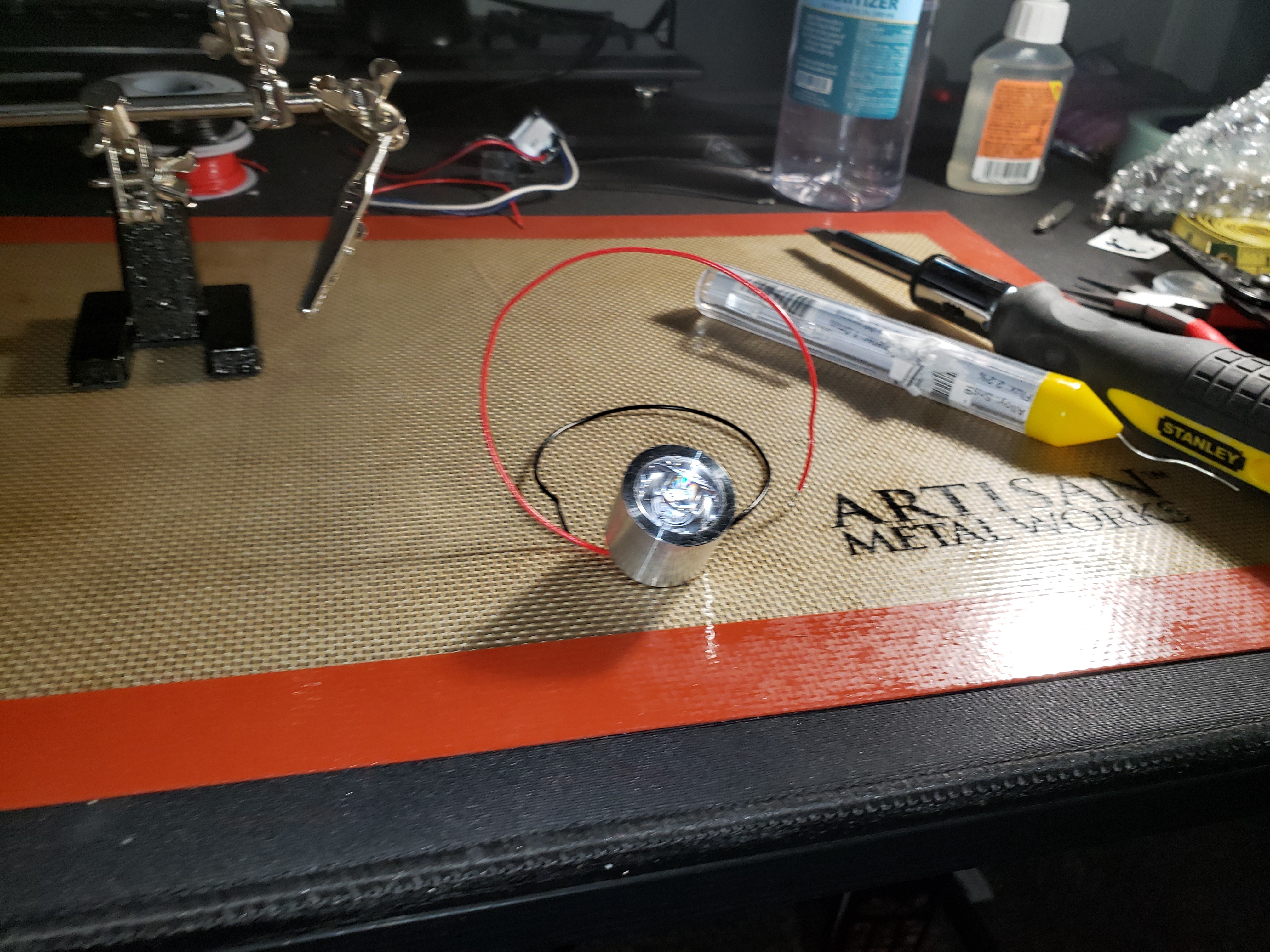

I wired the LED,

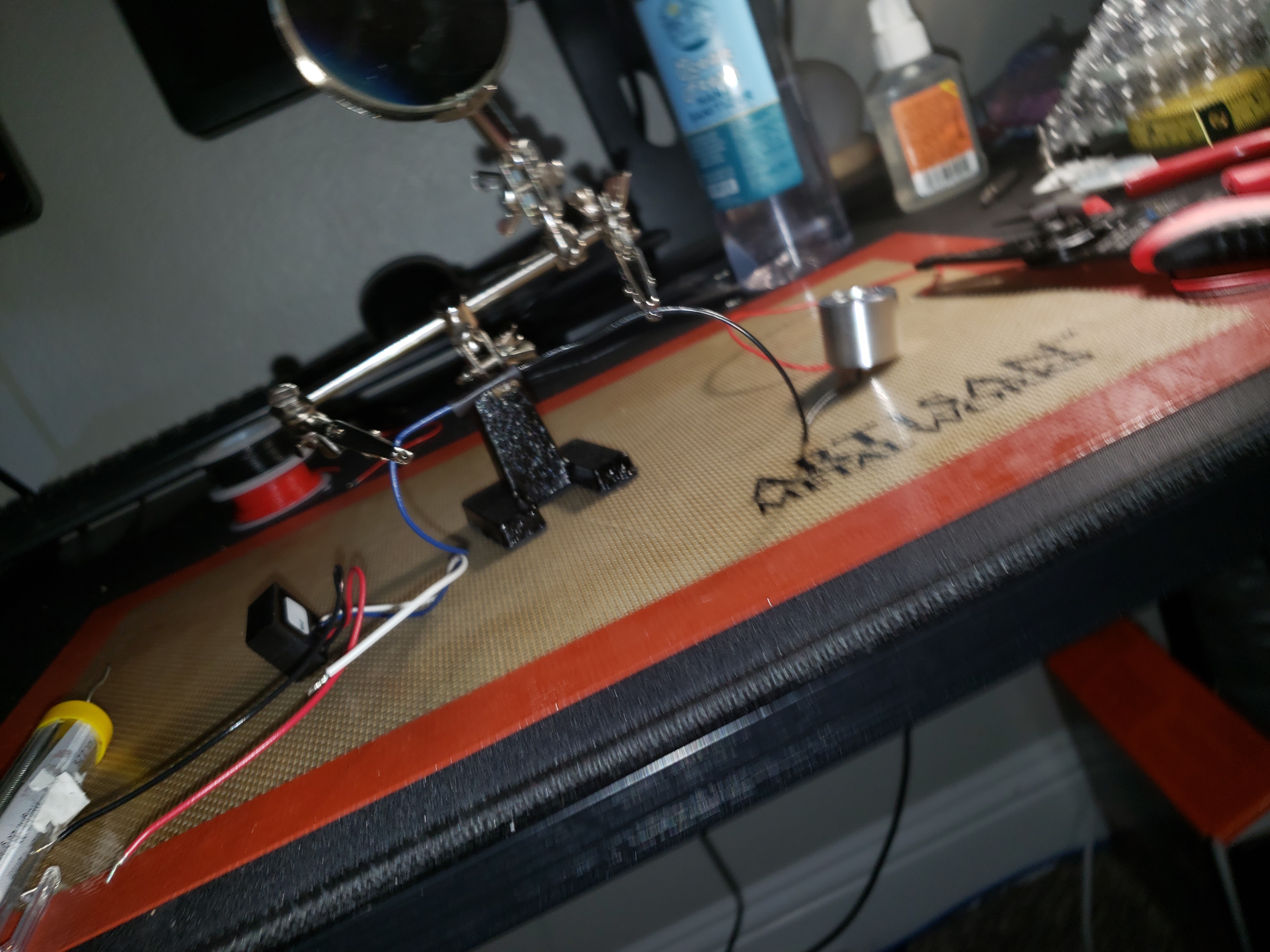

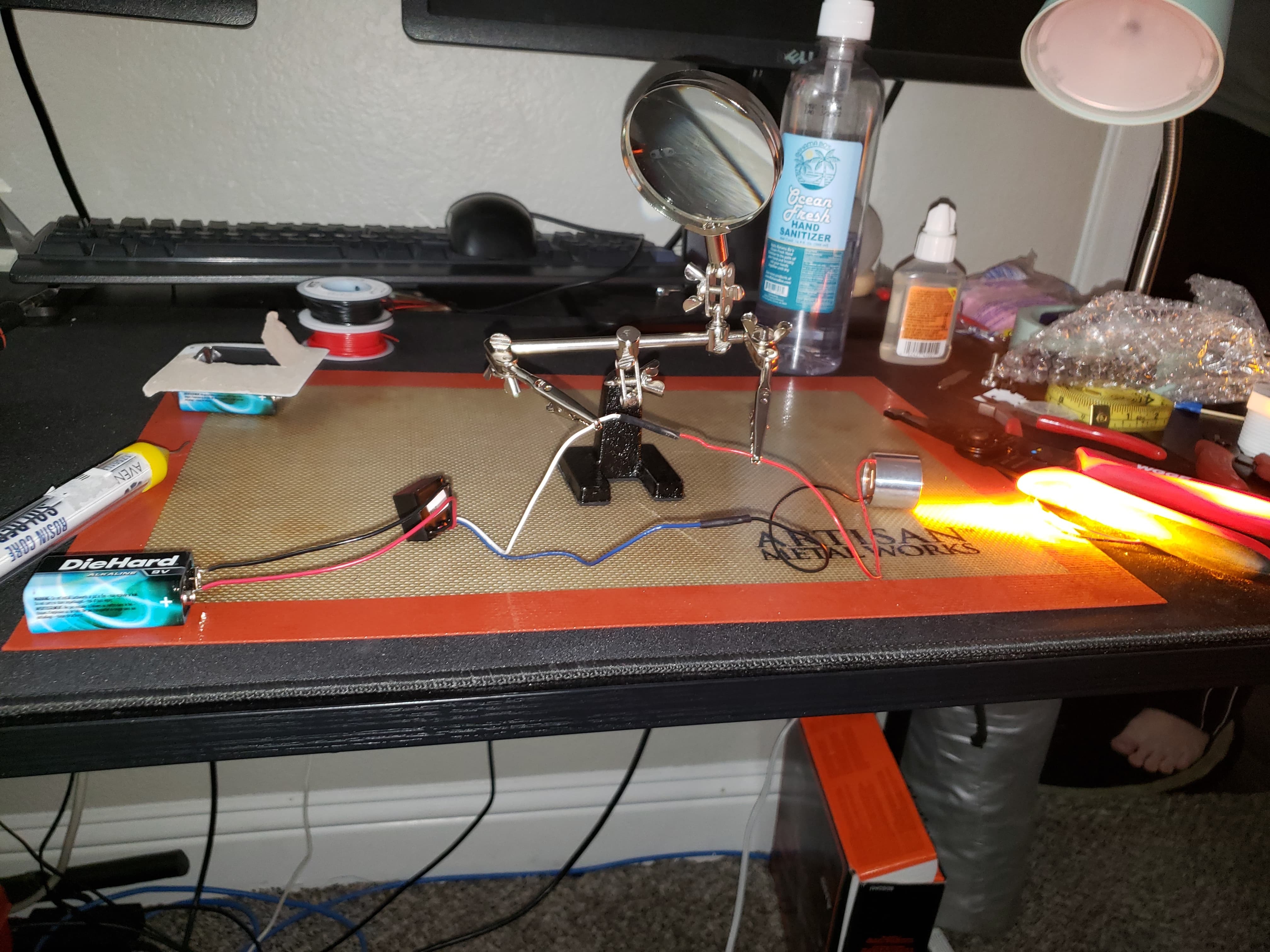

Then connected it to the buckpuck (a voltage regulator, which I am using instead of a resistor because it will let me use any battery situation I want) and then to the switch and a 9 volt battery snap (I know there are issues with using 9v batteries: the buckpuck will protect the LED, and I can attach it to a AAA battery pack later if I want.) Then I ran a battery test:
I don't have any pics of my stuffing the electronics into the saber; because crap, that was a pain in the ass.

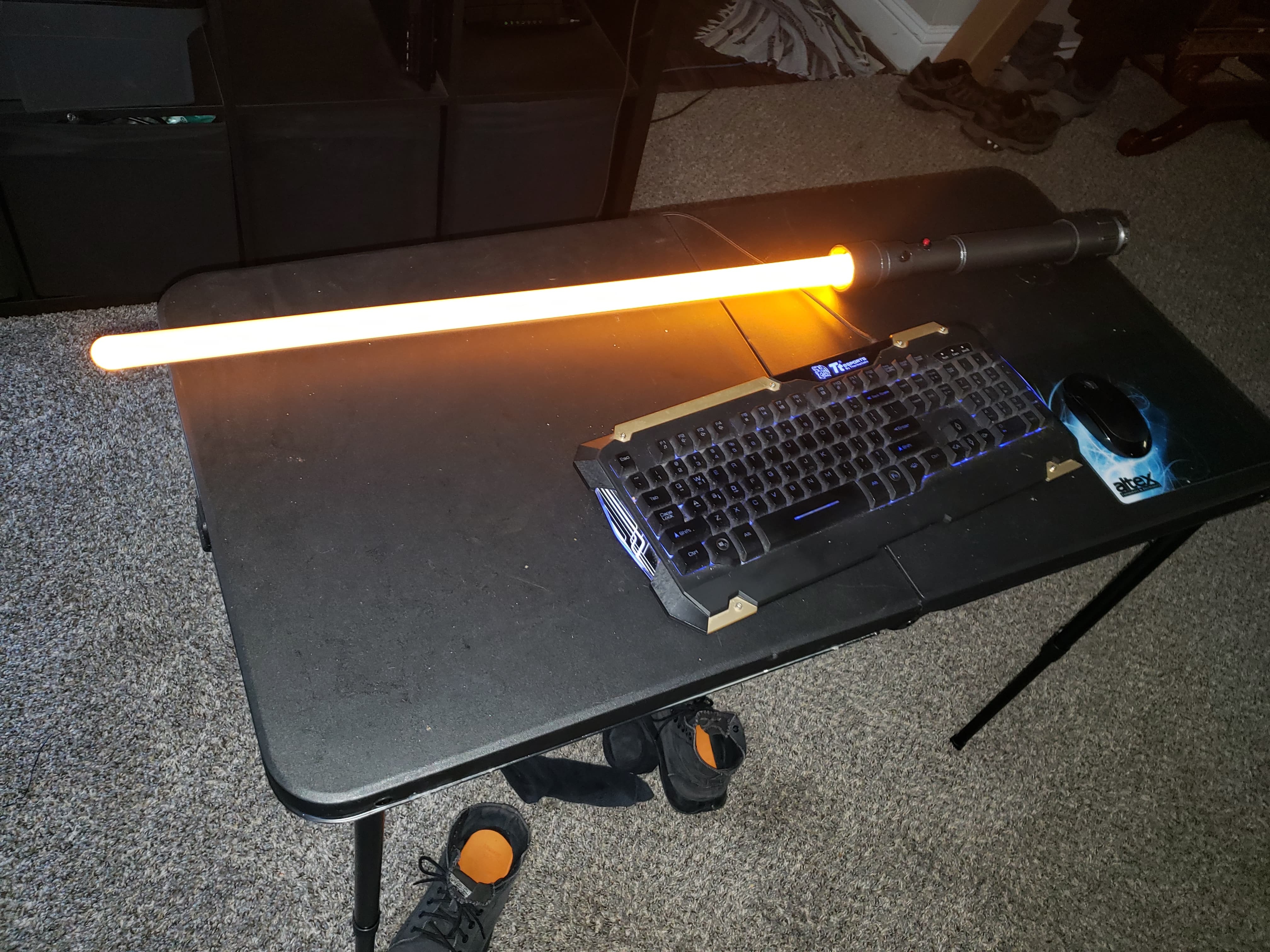

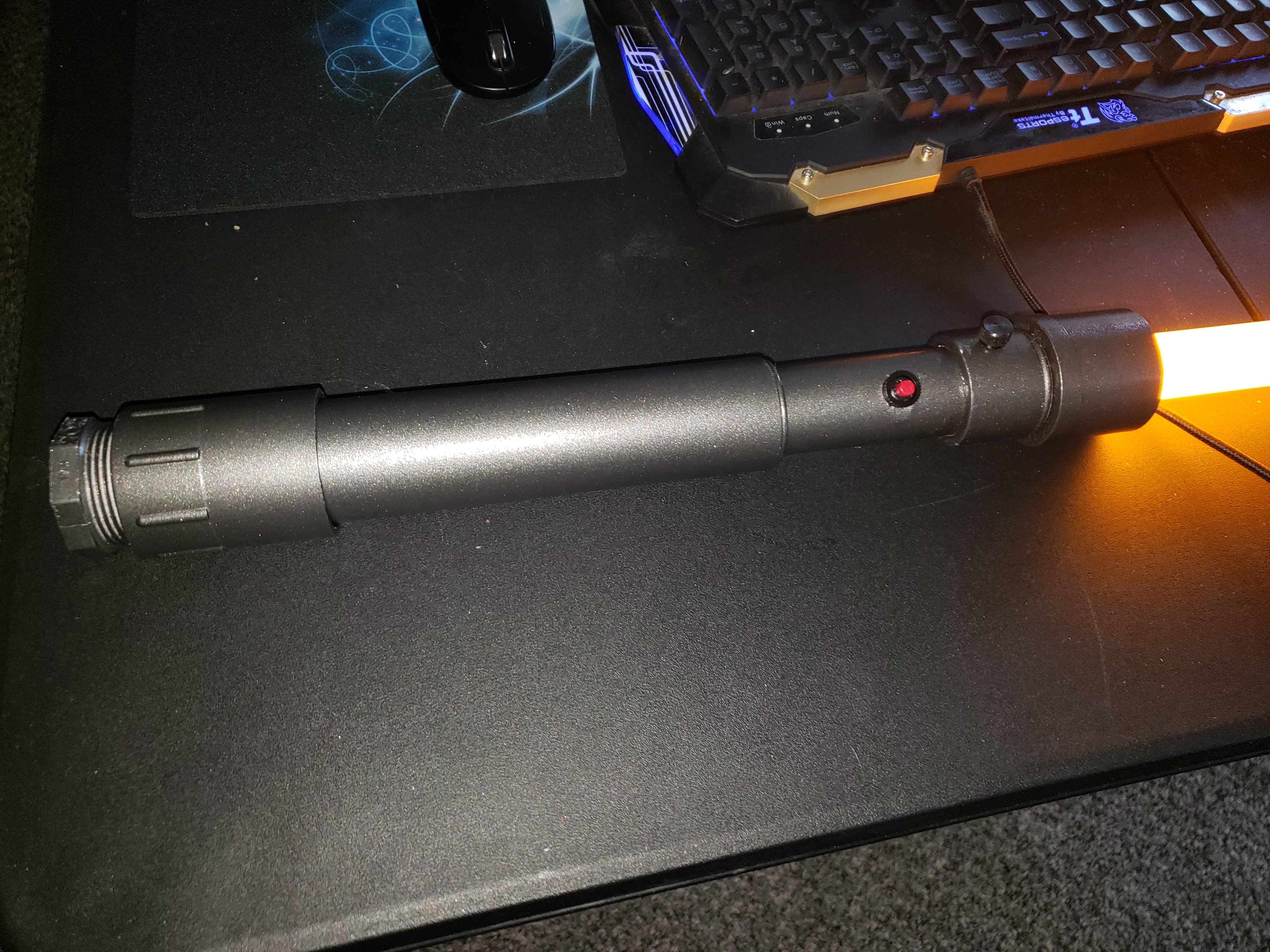

However, I now have the finished product:
I made a hecking lightsaber.
